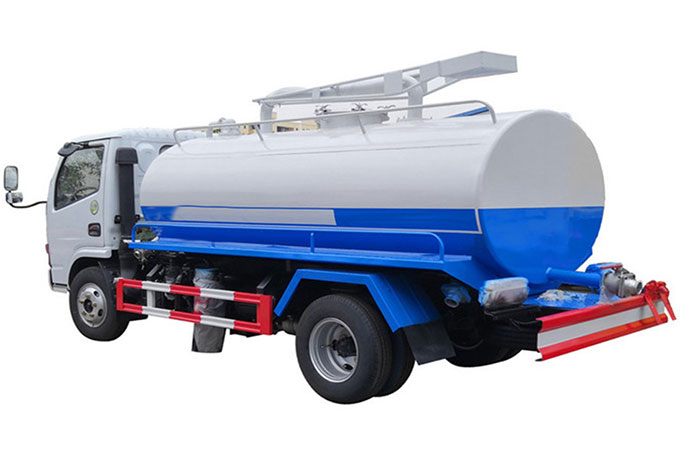

Model | FRMD 00190HP (Drive forms 4x2) Model 00 |
Year of manufacture | 2019 |
Drive type | 4x2 |
Engine type | ISDE 190Hp |
Engine power | 132Kw(2500r/min) |
Tank size (L*w*H)mm | 3450*1612 |
Tank effective (m3) | 6 |
Overall size (L*W*H) | 7150*2500*3130 |
Wheel base (mm) | 3950 |
Wheel track (F/R)(mm) | 1900,1810/1800 |
Tyre type | 9.00-20 |
Front /over hang (mm) | 1250/1950 |
Approach/departure angle(0) | 30/20 |
Min. ground clearance (mm) | ≥250 |
Rated load (kg) | 5795 |
Kerb weight (kg) | 6500 |
Total weight (kg) | 12490 |
Max. speed (km/h) | 95 |
Climb angle(0) | ≥ 30 |
Min. turn diameter (m) | less than or equal to 1616 |
Brake distance (30km/h)(m) | less than or equal to 10 |
Vacuum pump type | Rotary vane |
Rotation speed (r/min) | 500 |
Limiting vacuum | less than or equal to 99.6% |
power (kw) | 4 |
Pump speed (l/s) | 45 |
Pump depth (m) | ≥ 7 |
Pump to full time (min) | less than or eaual to 5 |
Max. tank lift angle (0) | 45 |
Tank lift time (s) | less than or eqal to 45 |
Open angle of back cover (0) | ≥45 |
Tank rust cleaning process | Shot penning |
Tank material | High strength abrasion resistant plate δ6 |
