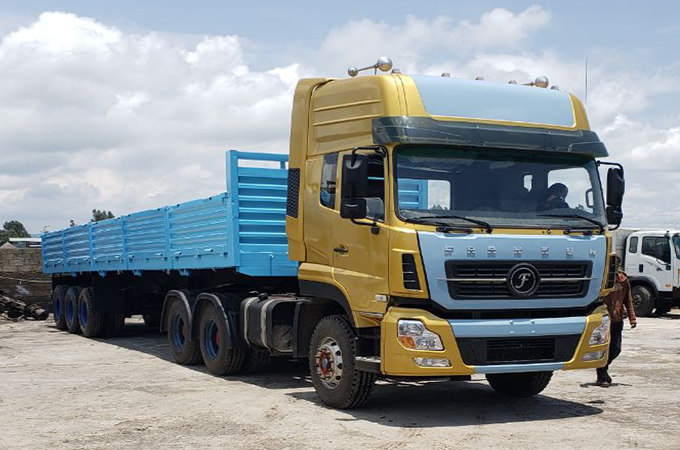

HIGH BED 40 ft. Truck
MODEL | FRK0002 |
Type | flatbed semi trailer,40” |
Year of manufacture | 2019 / 2020 G.C |
Capacity (kg) | 35,000-45,000 |
Kingpin height（mm） | 1,450 to suit the truck |
Overall length (mm) | 12,650 |
Overall width (mm) | 2,720 |
Overall heigh（mm） | 3,050(600mm plate600mm) |
Empty weight（kg） | 8,500 |
G.V.W.（kg） | 4,8500 |
Total axle load（kg） | 39,000 （13,000 x 3） BPW axle, |
Wheel base (mm) | 6,800 + 1300 + 1300 |
Tire | 12:00 – 20 18 ply (Nylon) |
Structure | All steel welded construction, Chinese steel standard Q345, |
Floor | 4mm chequered plate on Cprofile raves |
Chassis | Two longitudinal 500mm I beams(16mm upper,10mm middle and 18mm bottom) with cross number reinforcement ,Chinese steel standard Q345. |
Axle suspension | BPW axles with 16mm 8 leafs suspension. |
Brake | Two line drum brakes acting on all wheels with S cam actuation, two single acting diaphragm brake chambers. |
Landing gear | Two JOST heavy duty legs with static load 40 ton, and lifting 25 ton. JOST |
Kingpin | JOST 2’kingpin and 3.5’kingpin |
Electric system | 24V, 7 ways quick coupler and side and rear lights 24 |
Accessories | side and rear bumper reflecting signs, a tool box, one tire racks, one spare tire, side crush guards, 12 rope hook and winches， |
Finishing | Grit blasted anti-corrosion prime and high glossy white top painting. |
FRANKUN heavy truck technology platform
IVECO original CURsOR engine, the third generation common
rail engine technology of Boshi,low noise, longer period of
maintenance, no big repair in one million and two hundred
thousand kilometers.
Wide cabin, high roof, the inner height can be 2.2 you can
enjoy the big room.
The CURSOR engine has high power it can reach 400hp, you
can get more benefits.
The truck is equipped with original central spare parts, The
standard of the IVECo vehicle promises the quality of it.
The brand technology of IVECO, original cabin, cURSOR engine
and advanced painting will increase the values of the used truck.
