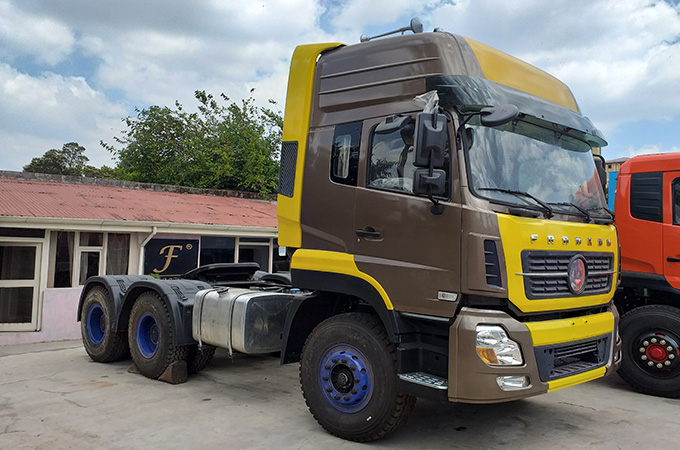

371 Power Truck
Type | Tractor Truck |
Model | FRK0001C |
Year of manufacture | 2019 / 2020 G.C |
Appearance Dimension：Length | 6810mm |
Appearance Dimension：Width | 2500mm |
Appearance Dimension：Height | 3174mm |
Engine | EURO III 12600 |
Gear Box | 10JS220TA |
Steering | ZF technology full hydraulic power assisted |
Clutch | 380mm type single plate power boosted. |
CAB | Flat-roof |
Max speed | 110km/h |
G.V.W | 50000kg |
Laden Mass | 40000 kg |
Empty Weight | 9800kg |
Front axle load | 6500kg |
Rear axle load | FRANKUN full cast reinforcement double reduce rear axle, no welding. 13000kgX2 |
Rear axle gear rate. | 4.8:1 |
Fuel type | Diesel |
Exhaust standard | Euro 3 |
Number of axle | 3 |
Wheel base | 3225+1350mm |
Number of suspension spring | 9/12 |
Number of tires | 10+1 |
Type of tire | 12.00-R20 |
saddle | 90# |
Longitudinal beam | 8mm+8mm, Two 317mm |
FRANKUN heavy truck technology platform
IVECO CURSOR-9
IVECO Original CURSOR-9 engine, the third generation
common rail engine technology of Boshi, low noise, longer
period of maintenance, no big repair in one million and two
hundred thousand kilometers.
Wind cabin, high roof, the inner maximum height can be 2.2
merers, you can enjoy the big room.
Cursor-9
The CURSOR-9 engine has high power which can reach
400HP, you can get more benefits.
