*Model
FR003
Driving Type
6*4
*Wheel Base
4,125+1,350mm
*Total Weight
25,000kg
Tire Weight
13,850kg
Rated Payload
16 CBM kg
*Overall Dimensions (LxWxH)
9,695*2,500*3,400 mm
Engine Brand
Cummins
Engine Power
380hp / 283.37kw
Emission
EURO 2
Maximum Speed
110 km/h
Clutch
430mm type single plate power boosted
Fuel Type
Diesel
Gear Box
HW 19710,10 Forwards gear & 2 Reverse Gear
Number of Axles
3
Axle Type
Steyr
Axle Loading Capacity (F)
9 tons
Axle Loading Capacity (R)
16*2
Leaf Spring No. (F/R)
5/7
Rear Axle Gear Rate
4.8:1
Breaker System
Double Circuited breake with ABS System
Number of Tires
10+1
Type of Tire
12.00-R20
Steering
ZF technology full hydraulic power assisted
Fuel Tank
650L
Color
Customize
Driving
Left & Right Hand Driving
Cabin Style
Low roof one bed, Air Speaker, Power Window, Air-Suspension Seat
Cargo body size (LxWxH, Area)
5,600x2,300x1,500 mm 19.32m3
Cargo thickness
Bottom: 8mm, Side: 6mm
Lift type of carriage
Middle side
Approching angle (°)/Departure angle(°)
19° / 26°

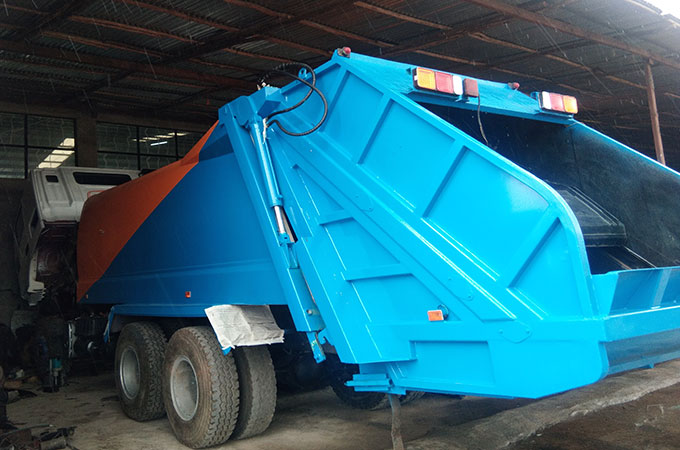

COMPRESSIONAL GARBAGE TRUCK

Body is Made up of garbage can, sewage tank, filler, scraper, Dozer's Multiple directional valves, hydraulic systems, device for hanging barrel and other components. Garbage can's structural for the first rectangular and rear arc- box.
Optional hopper door and rear bin lifting mechanism. Bilateral 6-cylinder hydraulic power system Has the function of automatic compression and creep compression, high compression ratio, automatic loading capacity, sealing well. Compression type garbage truck for whole sealing type, the sewage directly into the waste in the process of compression, completely solve the secondary transportation, key parts imported components. with the bucket hoisting frame body material: carbon steel, internal adopt epoxy anticorrosive processing.
Dump function, hydraulic operation, easy to dump Seal form are totally enclosed, on the flip, on a slide to prevent Secondary pollution.
